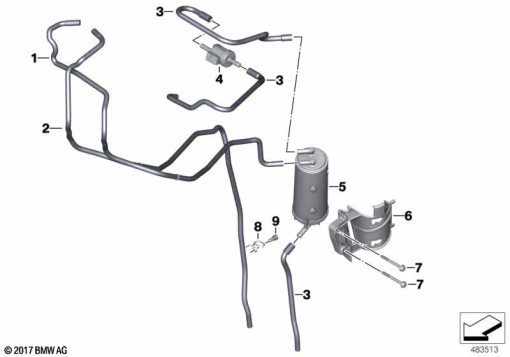

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16135B40E30 | HOSE | - | |
16135B40E31 | HOSE - TANK-AKFAlternative for position 1 | - | ||
| 2 | 16135A71729 | TANK VENTILATION LINE | - | |
| 3 | 16 13 8 489 422 | SET: SET SHED HOSES | - | |
| 4 | 16 13 8 567 224 | FUEL TANK BREATHER VALVE | - | |
| 5 | 16 13 8 522 924 | ACTIVATED CHARCOAL FILTER | - | |
| 6 | 16 13 8 392 276 | HOLDER | - | |
| 7 | 13 54 8 521 147 | HEX BOLT - 6,0X53-10.9 | - | |
| 8 | 16 13 8 393 295 | WIRE-STRAP | - | |
| 9 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV | - |
