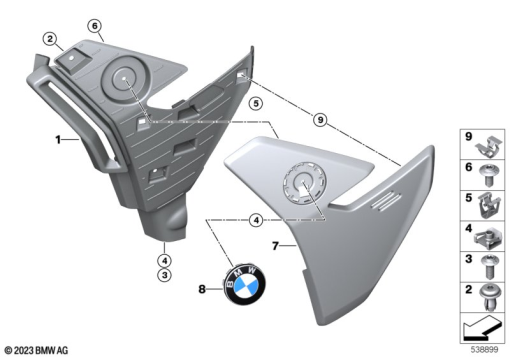

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 702 989 | RADIATOR COWL, INNER LEFT | - | |
46 63 1 702 990 | RADIATOR COWL, INNER, RIGHTAlternative for position 1 | - | ||
| 2 | 07145A42E91 | EXPANDING RIVET | - | |
| 3 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 07 14 6 957 031 | PLUG-IN RETAINER | - | |
| 6 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 7 | 46635A7FCD7 | RADIATOR COWL, OUTER LEFT - ROHTEIL/BLANK | - | |
46635A7FCD6 | RADIATOR COWL, OUTER RIGHT - ROHTEIL/BLANKAlternative for position 7 | - | ||
| 8 | 46 63 8 546 386 | BMW EMBLEM | - | |
| 9 | 46 63 8 406 049 | CLIP | - |
