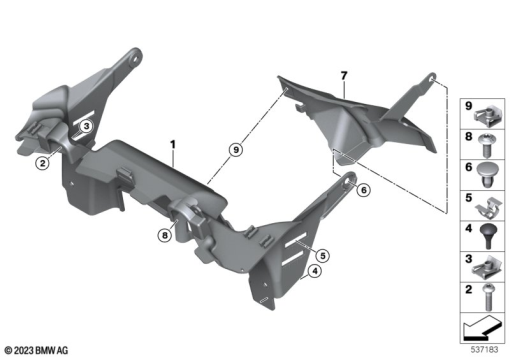

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 925 410 | EXHAUST DUCT, COOLER | 1 | |
| 2 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 3 | 07 14 7 286 036 | C-CLIP NUT, SELF-LOCKING - M6-ZNS3 | 1 | |
| 4 | 52 53 7 703 580 | RUBBER SUPPORT | 1 | |
| 5 | 46 63 8 406 049 | CLIP | 1 | |
| 6 | 07 14 7 136 172 | EXPANDING RIVET | 1 | |
| 7 | 46635A7A077 | AIR DUCT | 1 | |
| 8 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | 1 | |
| 9 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 |
