F900GS 22 (K81) | Frame, Fairing, Cases

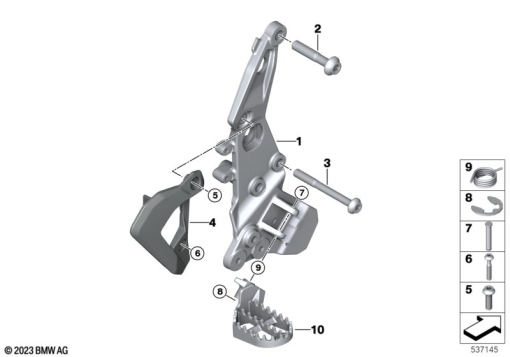

FOOTREST PLATE/FOOTREST FRONT RIGHT
Diagram #46_2639 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46715A6F8B8 | FOOT PEG PLATE RIGHT | - | |
| 2 | 46 71 9 909 450 | FILLISTER-HEAD SCREW - M12X60 | - | |
| 3 | 07 12 9 908 724 | FILLISTER-HEAD SCREW - M10X95-10.9 | - | |
| 4 | 46 71 8 392 296 | HEEL GUARD, RIGHT | - | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 6 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 7 | 46 71 7 675 208 | PIN - L=44MM | - | |
| 8 | 07 11 9 909 941 | CIRCLIP | - | |
| 9 | 46 71 8 526 107 | RETAINER SPRING | - | |
| 10 | 46 71 1 702 994 | FUßRASTE RIGHT | - |
