F900GS 22 (K81) | Frame, Fairing, Cases
FOOTREST PLATE/FOOTREST FRONT LEFT

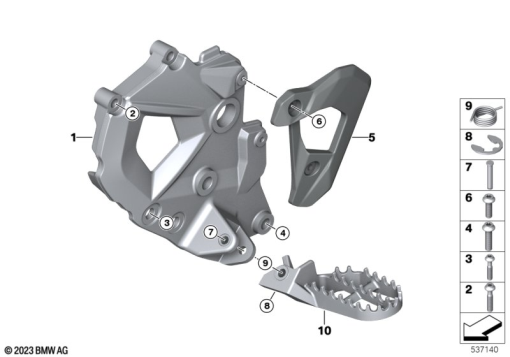

Diagram #46_2638 | 10 parts
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 8 393 175 | FOOTREST PLATE, LEFT | - | |
| 2 | 07 12 9 909 571 | FILLISTER-HEAD SCREW - M8X40-10.9 | - | |
| 3 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 4 | 07 12 9 907 428 | FILLISTER-HEAD SCREW - M10X35-8.8 | - | |
| 5 | 46 71 8 392 295 | HEEL GUARD, LEFT | - | |
| 6 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 7 | 46 71 7 675 208 | PIN - L=44MM | - | |
| 8 | 07 11 9 909 941 | CIRCLIP | - | |
| 9 | 46 71 8 526 107 | RETAINER SPRING | - | |
| 10 | 46 71 1 702 995 | FUßRASTE LEFT | - |
