Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 52 9 480 186 | SENSOR RING - Z=48 | - | |
| 2 | 34 52 8 404 803 | WHEELSPEED SENSOR | - | |
| 3 | 07 12 9 907 433 | TORX BOLT - M5X10-8.8-ZNNIV | - | |
| 4 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | - | |
| 5 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 6 | 34 52 8 414 775 | CABLE CLAMP | - | |
| 8 | 34 52 7 664 098 | CABLE CLAMP - D=6/4,5MM | - |

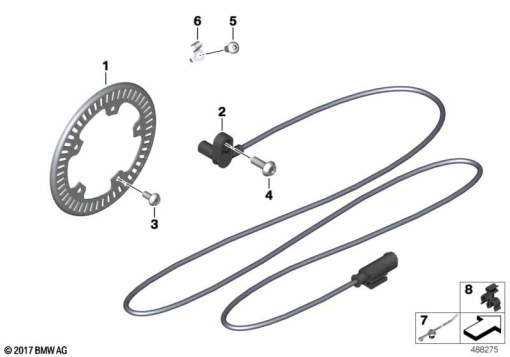

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
