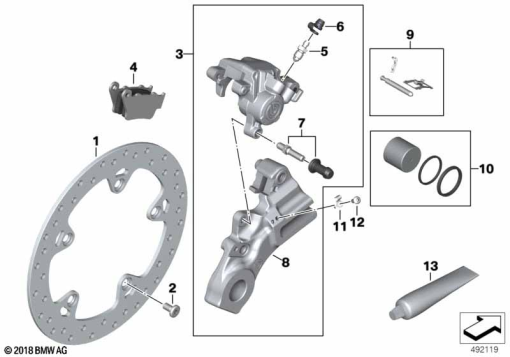

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 7 664 102 | BRAKE DISK | - | |
| 5 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| - | 34 21 9 467 615 | BRAKE CALIPER, REAR, WITHOUT BRAKE PADS | - | |
| - | 34 21 7 107 625 | SET: BRAKE PADS KIT, REAR | - | |
| - | 83 12 2 296 187 | Brake Pad Paste - 5 ml | - | |
| 5 | 34 21 2 335 975 | VENT SCREW | - | |
| 6 | 34 21 1 236 794 | DUST CAP | - | |
| 7 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 8 | 34 21 9 467 609 | BRAKE-CALIPER SUPPORT, REAR | - | |
| 9 | 34 21 8 382 871 | SET: MOUNTING PARTS SET | - | |
| 10 | 34 21 8 382 872 | SET: SET PISTONS WITH GASKET | - | |
| 11 | 34 51 7 695 906 | CABLE HOLDER | - | |
| 12 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 13 | 83 19 2 158 852 | BRAKE PAD PASTE - 100G | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
