F850GS ADV 17 (K82) | Wheels

CROSS SPOKE WHEEL REAR

Diagram #36_2482 | 33 parts

100%

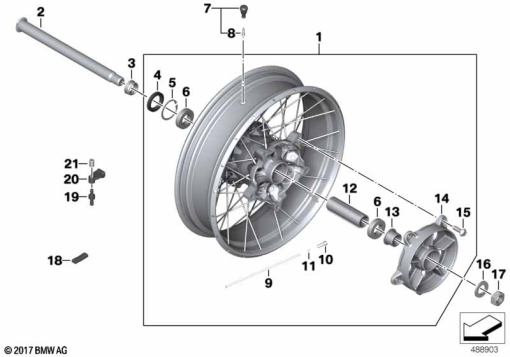

F850GS ADV 17 (K82) CROSS SPOKE WHEEL REAR exploded view parts diagram

Parts List (33)

#Part NumberDescriptionQty
1
36 31 8 393 890
CROSS-SPOKED WHEEL GOLD REAR - 4.25X171
1
36 31 8 395 502
CROSS-SPOKED WHEEL BLACK REAR - 4.25X171
2
33 17 7 718 528
AXLE SHAFT REAR1
3
36 31 8 555 423
SPACER BUSH - 14.15X28.21
4
36 31 8 561 709
SHAFT SEAL - 35X52X71
5
07 11 9 934 723
LOCK RING - 52X21
6
36 31 8 564 955
GROOVED BALL BEARING1
7
36 31 7 653 064
VALVE - D=15MM1
8
36 31 7 683 236
VALVE - L=20MM1
9
36 31 8 406 052
SPOKE - L=198MM1
10
36 31 1 540 421
NIPPLE - M4 (to 10/21)1
10
07 14 7 924 204
NIPPLE - M41
11
36 31 9 909 516
GRUB SCREW - M4X81
12
36 31 8 562 654
SPACER BUSH - 112.5X28.51
13
36 31 8 564 980
SPACER BUSH - 25.2X28.21
14
36 31 8 564 969
REAR WHEEL HUB DAMPER HOUSING1
15
36 31 9 908 565
FILLISTER-HEAD SCREW - M10X301
16
07 11 9 906 682
WASHER1
17
33 17 7 718 533
NUT - M24X1,51
18
36 31 7 720 635
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G1
18
36 31 7 720 636
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G1
18
36 31 7 720 637
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G1
18
36 31 7 720 638
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G1
18
36 31 7 720 639
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G1
18
36 31 7 720 640
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G1
19
36 31 8 565 086
VALVE - RDC (to 08/22)1
1
36 31 8 359 962
NUT - M8X1.0 (to 08/22)1
19
36 31 7 108 181
ANGLE VALVE (from 03/22)1
20
36 31 9 832 032
RDC SENSOR (to 08/22)1
20
36 31 7 914 365
RDC SENSOR (to 08/22)1
20
36 31 7 108 983
RDC SENSOR - 433 MHZ (from 03/22)1
21
36 31 8 359 962
NUT - M8X1.0 (to 08/22)1
21
36 31 9 829 827
INTERNAL TORX SCREW WITH WASHER - M5 (from 03/22)1
