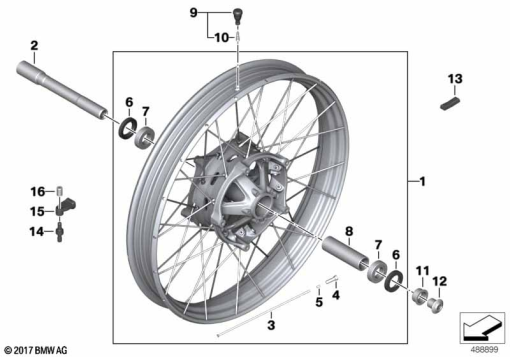

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 393 889 | CROSS-SPOKED WHEEL GOLD FRONT - 2.15X21 | - | |
36 31 8 395 499 | CROSS SPOKE WHEEL BLACK FRONT - 2.15X21Alternative for position 1 | - | ||
| 2 | 36 31 7 925 192 | QUICK-RELEASE AXLE | - | |
| 3 | 36 31 8 406 048 | SPOKE - 215MM | - | |
| 4 | 36 31 1 540 421 | NIPPLE - M4 (to 10/21) | - | |
07 14 7 924 204 | NIPPLE - M4Alternative for position 4 | - | ||
| 5 | 36 31 9 909 516 | GRUB SCREW - M4X8 | - | |
| 6 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | - | |
| 7 | 36 31 8 531 207 | GROOVED BALL BEARING - 25X47 | - | |
| 8 | 36 31 8 551 385 | SPACER BUSH - D=25.5 L=105 | - | |
| 9 | 36 31 7 653 064 | VALVE - D=15MM | - | |
| 10 | 36 31 7 683 236 | VALVE - L=20MM | - | |
| 11 | 36 31 8 544 127 | BUSH | - | |
| 12 | 36 31 8 561 528 | SCREW - M20X1,5 | - | |
| 13 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 13 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 13 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 13 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 13 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 13 | - | ||
| 14 | 36 31 8 565 086 | VALVE - RDC (to 08/22) | - | |
| - | 36 31 8 359 962 | NUT - M8X1.0 (to 08/22) | - | |
| 14 | 36 31 7 108 181 | ANGLE VALVE (from 03/22) | - | |
| 15 | 36 31 9 832 032 | RDC SENSOR (to 08/22) | - | |
36 31 7 914 365 | RDC SENSOR (to 08/22)Alternative for position 15 | - | ||
36 31 7 108 983 | RDC SENSOR - 433 MHZ (from 03/22)Alternative for position 15 | - | ||
| 16 | 36 31 8 359 962 | NUT - M8X1.0 (to 08/22) | - | |
36 31 9 829 827 | INTERNAL TORX SCREW WITH WASHER - M5 (from 03/22)Alternative for position 16 | - |
