F850GS ADV 17 (K82) | Service Items
SERVICE OF TELESCOPIC FORKS

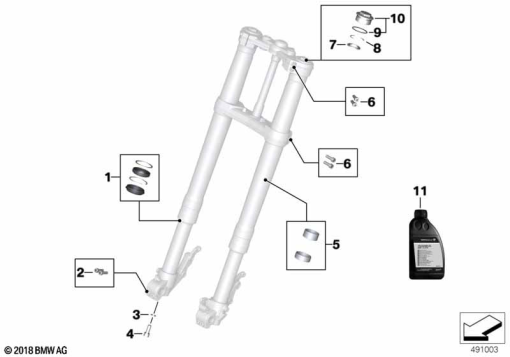

Diagram #02_0178 | 11 parts | 1 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 358 657 | SET: SET OF GASKETS | 1 | |
| 2 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 3 | 31 42 2 312 710 | GASKET | 1 | |
| 4 | 07 14 9 480 248 | SCREW - M8X22-8.8 | 1 | |
| 5 | 31 42 8 358 641 | SET: BUSH BEARING SET | 1 | |
| 6 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 7 | 31 42 8 358 639 | STOP BUFFER | 1 | |
| 8 | 31 42 8 358 638 | SNAP RING | 1 | |
| 9 | 31 42 8 358 636 | O-RING | 1 | |
| 10 | 31 42 8 356 856 | COVER LID | 1 | |
| 11 | 83 19 2 470 714 | TELESCOPIC FORK OIL TYPE 4 - 1000ML | 1 |
