F850GS ADV 17 (K82) | Service Items

BRAKE SERVICE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #02_0175 | 35 parts | 1 available in shop

100%

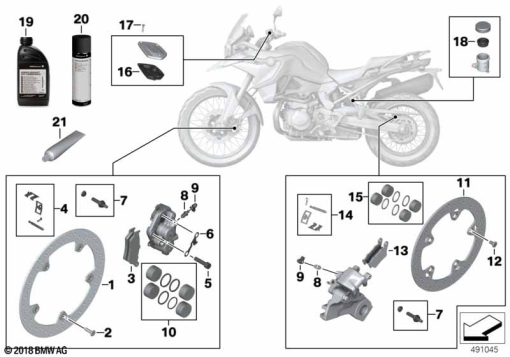

F850GS ADV 17 (K82) BRAKE SERVICE exploded view parts diagram

Parts List (35)

#	Part Number	Description	Qty
1	34 11 8 526 566	BRAKE ROTOR WITH RIVET - D=305-4,5MM	1
10	34 11 7 700 989	COUNTERSUNK SCREW - M8X27-10.9 MK	1
2	34 11 7 700 989	COUNTERSUNK SCREW - M8X27-10.9 MK	1
3	34 21 8 569 412	SET: SET OF BRAKE PADS FRONT	1
3	83 12 2 296 187	Brake Pad Paste - 5 ml	1
4	34 11 8 382 714	SET: SET OF MOUNTING PARTS, LEFT	1
4	34 11 8 382 868	SET: SET OF MOUNTING PARTS, RIGHT	1
5	07 12 9 907 937	FILLISTER-HEAD SCREW - M10X45-U0-8.8	1
6	34 52 8 404 579	BRACKET	1
7	34 21 2 330 312	REPAIR KIT, RUBBER COVER	1
8	34 21 2 335 975	VENT SCREW	1
9	34 21 1 236 794	DUST CAP	1
10	34 11 8 382 869	SET: SET PISTONS WITH GASKET	1
11	34 21 7 664 102	BRAKE DISK	1
5	33 17 7 709 205	TORX SCREW - M8X15,5-MK-ZNS3	1
12	33 17 7 709 205	TORX SCREW - M8X15,5-MK-ZNS3	1
13	34 21 7 722 884	SET: BRAKE PADS KIT, REAR (to 09/22)	1
13	83 12 2 296 187	Brake Pad Paste - 5 ml	1
13	34 21 7 107 625	SET: BRAKE PADS KIT, REAR	1
13	83 12 2 296 187	Brake Pad Paste - 5 ml	1
14	34 21 8 382 871	SET: MOUNTING PARTS SET	1
15	34 21 8 382 872	SET: SET PISTONS WITH GASKET	1
16	32 72 8 558 856	RUBBER BOOT	1
17	32 72 8 559 863	COUNTERSUNK SCREW - M4X20	1
18	34 31 8 358 710	BOOT	1
19	83 13 2 445 461	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23)	1
19	83105A87362	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L	1
19	83135A824F1	BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L	1
19	83 13 2 405 975	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 04/23)	1
19	83135A824F2	BRAKE FLUID DOT4, LOW-VISCOSITY EU - 250ML	1
20	83 19 2 445 462	BRAKE CLEANER 2.0 - 500ML (to 09/20)	1
20	83195A23100	BRAKE CLEANER, ACETONE-FREE - 500ML	1
20	83 19 2 406 954	BRAKE CLEANER 2.0 - 500ML (to 07/20)	1
20	83195A260A8	BRAKE CLEANER, ACETONE-FREE - 500ML	1
21	83 19 2 158 852	BRAKE PAD PASTE - 100G	1
