F850GS ADV 17 (K82) | Lighting

UNIVERSAL SOCKET HOUSING

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #63_2135 | 2 parts

100%

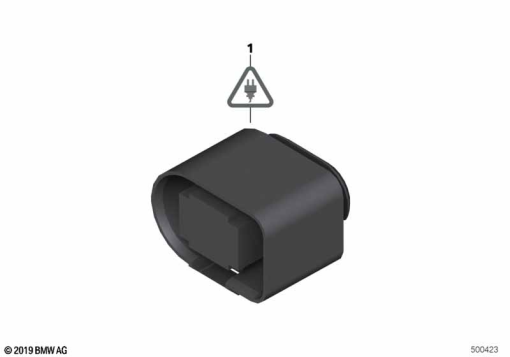

F850GS ADV 17 (K82) UNIVERSAL SOCKET HOUSING exploded view parts diagram

Parts List (2)

#	Part Number	Description	Qty
1	12 52 7 505 225	UNIVERSAL SOCKET HOUSING - 6 POL.	-
6	12 52 0 143 427	SOCKET TERMINAL SLK 2.8 ELA WITH WIRE - 0,2- 0,5MM²/AG	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
