F850GS ADV 17 (K82) | Lighting

NUMBER PLATE BASEPLATE, REFLECTORS

Diagram #63_2208 | 5 parts

100%

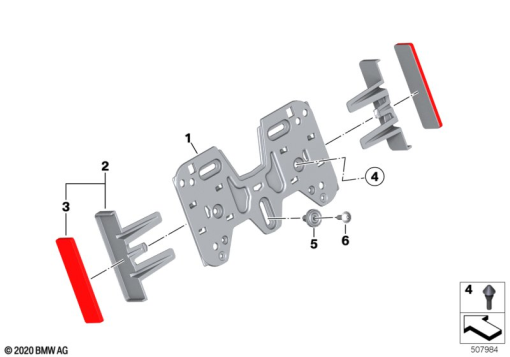

F850GS ADV 17 (K82) NUMBER PLATE BASEPLATE, REFLECTORS exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
63 14 8 564 665
LICENCE PLATE ADAPTOR-
2
63 14 8 546 605
MOUNTING FOR REAR REFLECTOR-
3
63 14 7 671 349
REAR REFLECTOR RED-
5
51 18 1 852 299
PLUG-IN NUT-
6
07 14 7 137 416
FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X16-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
