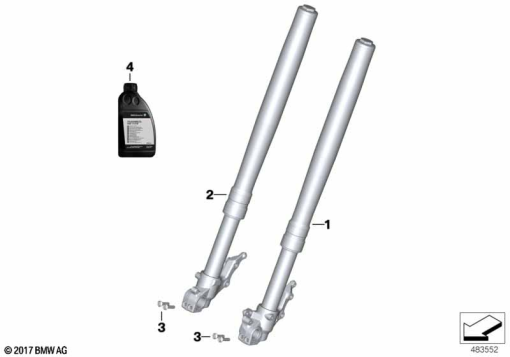

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 9 480 341 | FORK ROD, BLACK, LEFT | - | |
31 42 9 480 347 | FORK ROD, GOLD, LEFTAlternative for position 1 | - | ||
31 42 1 540 551 | FORK ROD, BLACK, LEFTAlternative for position 1 | - | ||
31 42 1 540 561 | FORK ROD, GOLD, LEFTAlternative for position 1 | - | ||
31 42 9 480 345 | FORK ROD, BLACK, LEFTAlternative for position 1 | - | ||
31 42 9 480 349 | FORK ROD, GOLD, LEFTAlternative for position 1 | - | ||
31 42 1 540 553 | FORK ROD, BLACK, LEFTAlternative for position 1 | - | ||
31 42 1 540 555 | FORK ROD, GOLD, LEFTAlternative for position 1 | - | ||
| 2 | 31 42 9 480 342 | FORK ROD, BLACK, RIGHT | - | |
31 42 9 480 348 | FORK ROD, GOLD, RIGHTAlternative for position 2 | - | ||
31 42 9 480 346 | FORK ROD, BLACK, RIGHTAlternative for position 2 | - | ||
31 42 9 480 350 | FORK ROD, GOLD, RIGHTAlternative for position 2 | - | ||
| 3 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | - | |
| 4 | 83 19 2 470 714 | TELESCOPIC FORK OIL TYPE 4 - 1000ML | - |
