F850GS ADV 17 (K82) | Front Suspension

STANCHION

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

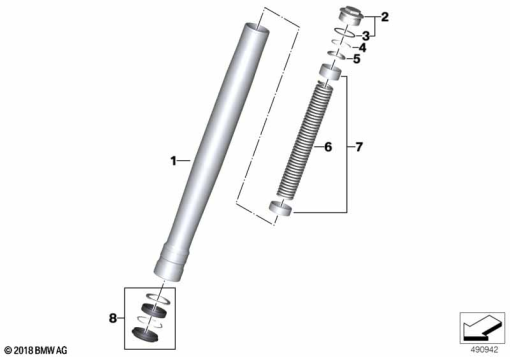

Diagram #31_1410 | 12 parts

100%

Parts List (12)

#	Part Number	Description	Qty
1	31 42 9 480 351	FORK TUBE, GOLD	-
	31 42 9 480 344	FIXED OUTER FORK TUBE, BLACKAlternative for position 1	-
2	31 42 9 480 358	COVER LID	-
3	31 42 8 358 636	O-RING	-
4	31 42 8 358 638	SNAP RING	-
5	31 42 8 358 639	STOP BUFFER	-
6	31 42 9 480 364	SET: SET SPRING RIGHT	-
	31 42 9 480 363	SET: SET SPRING LEFTAlternative for position 6	-
	31 42 9 480 365	SET: SET SPRING LEFTAlternative for position 6	-
	31 42 9 480 366	SET: SET SPRING RIGHTAlternative for position 6	-
7	31 42 8 358 641	SET: BUSH BEARING SET	-
8	31 42 8 358 657	SET: SET OF GASKETS	-
