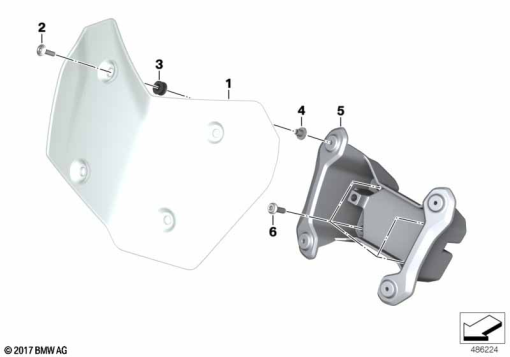

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 569 664 | TOURING WINDSCREEN CLEAR - L=390MM | 1 | |
| 1 | 77 33 9 444 326 | WINDSCREEN LARGE CLEAR - L=310MM | 1 | |
| 1 | 77 33 9 444 326 | WINDSCREEN LARGE CLEAR - L=310MM | 1 | |
| 1 | 77 33 9 444 326 | WINDSCREEN LARGE CLEAR - L=310MM | 1 | |
| 2 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | 1 | |
| 3 | 07 14 9 467 628 | RUBBER GROMMET | 1 | |
| 4 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | 1 | |
| 6 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 |
