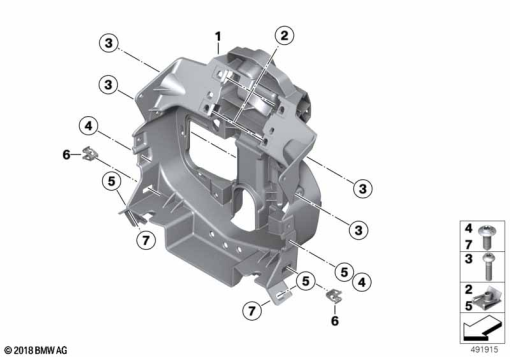

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 564 650 | FRONT PANEL CARRIER | 1 | |
| 2 | 07 14 7 286 036 | C-CLIP NUT, SELF-LOCKING - M6-ZNS3 | 1 | |
| 3 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 4 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | 1 | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 6 | 07 14 6 957 031 | PLUG-IN RETAINER | 1 | |
| 7 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | 1 |
