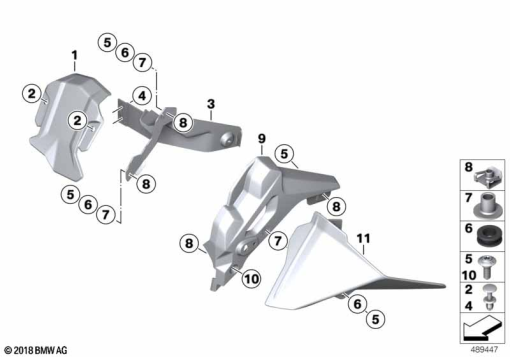

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 8 564 651 | SLIPSTREAM DEFLECTOR CENTER | - | |
| 2 | 07 14 7 136 172 | EXPANDING RIVET | - | |
| 3 | 46 63 1 541 723 | TRIM FOR SLIPSTREAM DEFLECTOR RIGHT - USB | - | |
46 63 8 569 667 | TRIM FOR SLIPSTREAM DEFLECTOR LEFTAlternative for position 3 | - | ||
| 4 | 07 14 7 136 172 | EXPANDING RIVET | - | |
| 5 | 46 63 8 534 939 | BODY SCREW WITHOUT SHOULDER - M5X25 | - | |
| 6 | 46 63 8 555 101 | RUBBER GROMMET | - | |
| 7 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | - | |
| 8 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 9 | 46 63 8 569 665 | WIND DEFLECTOR, LEFT | - | |
46 63 8 569 666 | WIND DEFLECTOR, RIGHTAlternative for position 9 | - | ||
| 10 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | - | |
| 11 | 46 63 8 569 669 | WIND DEFLECTOR, LEFT | - | |
46 63 8 569 670 | WIND DEFLECTOR, RIGHTAlternative for position 11 | - |
