F850GS ADV 17 (K82) | Frame, Fairing, Cases

FRONT WHEEL FENDER

Diagram #46_2098 | 3 parts

100%

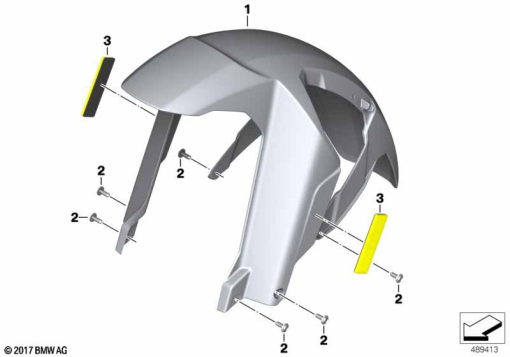

F850GS ADV 17 (K82) FRONT WHEEL FENDER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 61 8 564 623
FRONT WHEEL COVER, LOWER1
2
61 31 8 547 664
BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK1
3
63 14 7 671 350
REAR REFLECTOR YELLOW1
