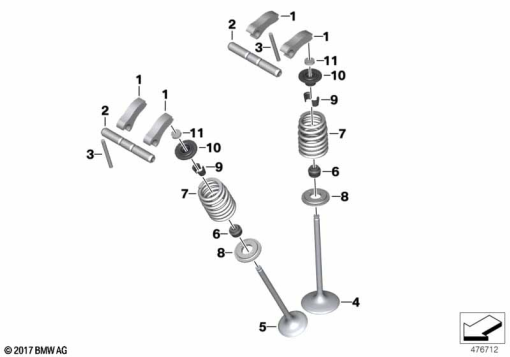

Parts List (61)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 33 8 405 623 | ROCKER ARM | - | |
| 2 | 11 32 7 713 818 | ROCKER ARM SHAFT | - | |
| 3 | 11 32 7 718 079 | NEEDLE ROLLER - 3,5X34,8 | - | |
| 4 | 11 34 8 535 516 | INTAKE VALVE (to 09/20) | - | |
11 34 9 457 142 | INTAKE VALVE (from 09/20)Alternative for position 4 | - | ||
| 5 | 11 34 8 534 222 | EXHAUST VALVE (to 09/20) | - | |
11 34 9 457 143 | EXHAUST VALVE (from 09/20)Alternative for position 5 | - | ||
| 6 | 11 34 8 535 530 | VALVE SEAL RING | - | |
| 7 | 11 34 8 396 366 | VALVE SPRING | - | |
| 8 | 11 34 8 562 216 | LOWER SPRING PLATE | - | |
| 9 | 11 34 8 562 210 | VALVE COLLET | - | |
| 10 | 11 34 8 562 212 | UPPER SPRING PLATE | - | |
| 11 | 11 34 7 718 085 | ADJUSTING PLATE - 1,72 MM | - | |
11 34 8 563 561 | ADJUSTING PLATE - 1,72 MMAlternative for position 11 | - | ||
11 34 7 719 083 | ADJUSTING PLATE - 1,74 MMAlternative for position 11 | - | ||
11 34 8 563 563 | ADJUSTING PLATE - 1,74 MMAlternative for position 11 | - | ||
11 34 7 718 086 | ADJUSTING PLATE - 1,76 MMAlternative for position 11 | - | ||
11 34 8 563 565 | ADJUSTING PLATE - 1,76 MMAlternative for position 11 | - | ||
11 34 7 718 088 | ADJUSTING PLATE - 1,84 MMAlternative for position 11 | - | ||
11 34 8 563 573 | ADJUSTING PLATE - 1,84 MMAlternative for position 11 | - | ||
11 34 7 718 090 | ADJUSTING PLATE - 1,92 MMAlternative for position 11 | - | ||
11 34 8 563 581 | ADJUSTING PLATE - 1,92 MMAlternative for position 11 | - | ||
11 34 7 718 091 | ADJUSTING PLATE - 1,96 MMAlternative for position 11 | - | ||
11 34 8 563 585 | ADJUSTING PLATE - 1,96 MMAlternative for position 11 | - | ||
11 34 7 719 089 | ADJUSTING PLATE - 1,98 MMAlternative for position 11 | - | ||
11 34 8 563 587 | ADJUSTING PLATE - 1,98 MMAlternative for position 11 | - | ||
11 34 8 563 567 | ADJUSTING PLATE - 1,78 MMAlternative for position 11 | - | ||
11 34 8 563 569 | ADJUSTING PLATE - 1,80 MMAlternative for position 11 | - | ||
11 34 8 563 571 | ADJUSTING PLATE - 1,82 MMAlternative for position 11 | - | ||
11 34 8 563 575 | ADJUSTING PLATE - 1,86 MMAlternative for position 11 | - | ||
11 34 8 563 577 | ADJUSTING PLATE - 1,88 MMAlternative for position 11 | - | ||
11 34 7 719 087 | ADJUSTING PLATE - 1,90 MMAlternative for position 11 | - | ||
11 34 8 563 579 | ADJUSTING PLATE - 1,90 MMAlternative for position 11 | - | ||
11 34 8 563 583 | ADJUSTING PLATE - 1,94 MMAlternative for position 11 | - | ||
11 34 8 563 589 | ADJUSTING PLATE - 2,00 MMAlternative for position 11 | - | ||
11 34 8 563 591 | ADJUSTING PLATE - 2,02 MMAlternative for position 11 | - | ||
11 34 8 563 593 | ADJUSTING PLATE - 2,04 MMAlternative for position 11 | - | ||
11 34 7 719 091 | ADJUSTING PLATE - 2,06 MMAlternative for position 11 | - | ||
11 34 8 563 595 | ADJUSTING PLATE - 2,06 MMAlternative for position 11 | - | ||
11 34 8 563 597 | ADJUSTING PLATE - 2,08 MMAlternative for position 11 | - | ||
11 34 8 563 599 | ADJUSTING PLATE - 2,10 MMAlternative for position 11 | - | ||
11 34 8 563 601 | ADJUSTING PLATE - 2,12 MMAlternative for position 11 | - | ||
11 34 8 563 603 | ADJUSTING PLATE - 2,14 MMAlternative for position 11 | - | ||
11 34 8 563 605 | ADJUSTING PLATE - 2,16 MMAlternative for position 11 | - | ||
11 34 8 563 607 | ADJUSTING PLATE - 2,18 MMAlternative for position 11 | - | ||
11 34 8 563 609 | ADJUSTING PLATE - 2,20 MMAlternative for position 11 | - | ||
11 34 8 563 611 | ADJUSTING PLATE - 2,22 MMAlternative for position 11 | - | ||
11 34 8 563 613 | ADJUSTING PLATE - 2,24 MMAlternative for position 11 | - | ||
11 34 8 563 615 | ADJUSTING PLATE - 2,26 MMAlternative for position 11 | - | ||
11 34 8 563 617 | ADJUSTING PLATE - 2,28 MMAlternative for position 11 | - | ||
11 34 8 563 619 | ADJUSTING PLATE - 2,30 MMAlternative for position 11 | - | ||
11 34 8 563 621 | ADJUSTING PLATE - 2,32 MMAlternative for position 11 | - | ||
11 34 8 563 623 | ADJUSTING PLATE - 2,34 MMAlternative for position 11 | - | ||
11 34 8 563 625 | ADJUSTING PLATE - 2,36 MMAlternative for position 11 | - | ||
11 34 8 563 627 | ADJUSTING PLATE - 2,38 MMAlternative for position 11 | - | ||
11 34 8 563 629 | ADJUSTING PLATE - 2,40 MMAlternative for position 11 | - | ||
11 34 8 563 631 | ADJUSTING PLATE - 2,42 MMAlternative for position 11 | - | ||
11 34 8 563 633 | ADJUSTING PLATE - 2,44 MMAlternative for position 11 | - | ||
11 34 8 563 635 | ADJUSTING PLATE - 2,46 MMAlternative for position 11 | - | ||
11 34 8 563 637 | ADJUSTING PLATE - 2,48 MMAlternative for position 11 | - | ||
11 34 8 563 639 | ADJUSTING PLATE - 2,50 MMAlternative for position 11 | - |
