F850GS ADV 17 (K82) | Engine

CAMSHAFT, CAMSHAFT GEAR, TIMING CHAIN

Diagram #11_6701 | 14 parts

100%

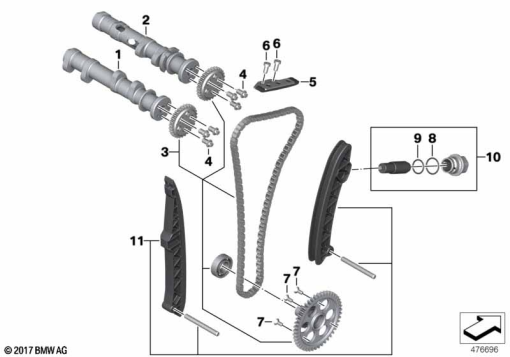

F850GS ADV 17 (K82) CAMSHAFT, CAMSHAFT GEAR, TIMING CHAIN exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
1
11 31 8 387 901
INLET CAMSHAFT-
2
11 31 8 387 903
CAMSHAFT EXHAUST-
3
11 00 8 404 492
SET: SET, TIMING CHAIN-
4
11 31 7 727 500
ASA-BOLT - M7X11.5-10.9-
5
11 31 8 562 330
SLIDE RAIL (to 08/22)-
11315A69F47
SLIDE RAIL (from 07/22)Alternative for position 5-
11315A69F47
SLIDE RAIL (to 08/22)Alternative for position 5-
-
11 12 7 924 218
CYLINDER HEAD COVER (to 08/22)-
6
07 12 9 907 404
FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV-
7
64 22 6 916 475
COUNTERSUNK HEAD SCREW - M5X12-ZNS3-
8
11 31 7 705 460
SET: O-RING SET-
9
07 11 9 906 605
O-RING - 18X2-
10
11 00 8 404 491
SET: SET OF CHAIN TENSIONERS-
11
11 00 8 404 490
SET: SET OF CHAIN GUIDE RAILS-
