F850GS ADV 17 (K82) | Electrical System

LINE CLIPS, HOSE SUPPORTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_6475 | 3 parts

100%

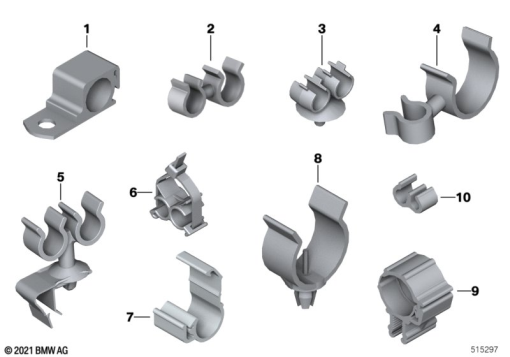

F850GS ADV 17 (K82) LINE CLIPS, HOSE SUPPORTS exploded view parts diagram

Parts List (3)

#	Part Number	Description	Qty
2	34 32 2 333 077	HOSE CLAMP, DOUBLE	-
6	34 32 7 704 570	WIRE HOLDER, TWO-PLACE	-
10	34 52 7 664 098	CABLE CLAMP - D=6/4,5MM	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
