F850GS ADV 17 (K82) | Electrical System
CABLE TIE, CABLE TIE WITH BRACKET

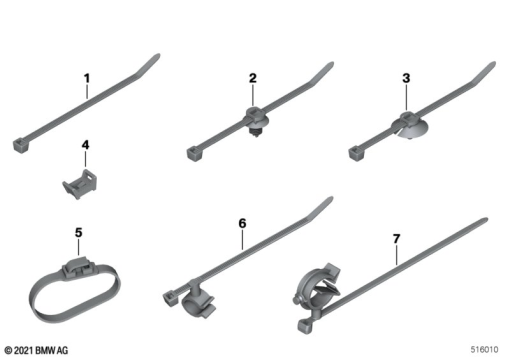

Diagram #61_6476 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 1 | 61 13 1 372 391 | CABLE TIE - L=100MM/B=2,5MM | 1 | |
| 1 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | 1 | |
| 1 | 61 13 8 383 722 | CABLE TIE - L=200MM/B=4,6MM | 1 | |
| 2 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | 1 | |
| 2 | 61 13 7 709 309 | CABLE STRAP WITH BRACKET | 1 |
