F850GS ADV 17 (K82) | Cooling

EXPANSION TANK

Diagram #17_1244 | 4 parts

100%

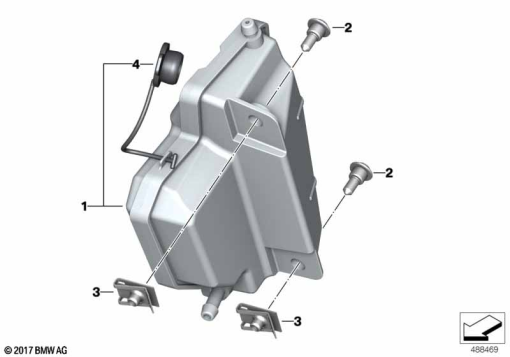

F850GS ADV 17 (K82) EXPANSION TANK exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
17 13 9 480 180
EXPANSION TANK1
2
46 63 8 521 657
COLLAR SCREW - M6X17,5-A2-701
3
51 12 7 070 202
C-CLIP NUT - M6-ZNS31
4
17 13 8 527 087
COVER LID1
