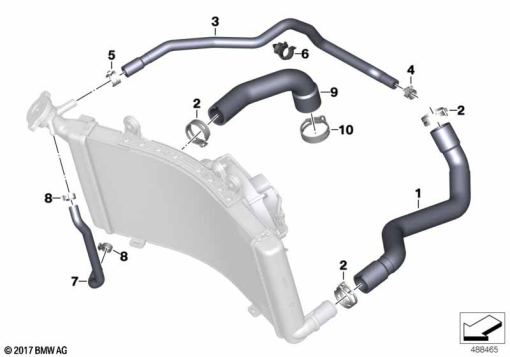

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 12 8 565 235 | COOLANT HOSE, SUPPLY | 1 | |
| 2 | 64 21 7 677 705 | SPRING RING SHELL - D=32MM | 1 | |
| 3 | 17 12 8 565 236 | VENT HOSE | 1 | |
| 4 | 17 12 7 523 358 | SPRING RING SHELL - D=14MM | 1 | |
| 5 | 17 12 7 713 885 | SPRING RING SHELL - D=18 | 1 | |
| 6 | 07 14 7 308 194 | TUBING SUPPORT - D16-18 | 1 | |
| 7 | 17 13 8 565 246 | OVERFLOW HOSE | 1 | |
| 8 | 16 12 1 180 240 | HOSE CLAMP - 12,8-15,3 | 1 | |
| 9 | 17 12 8 565 234 | COOLANT HOSE, RETURN | 1 | |
| 10 | 17 12 7 712 516 | SPRING RING SHELL - D=38 | 1 |
