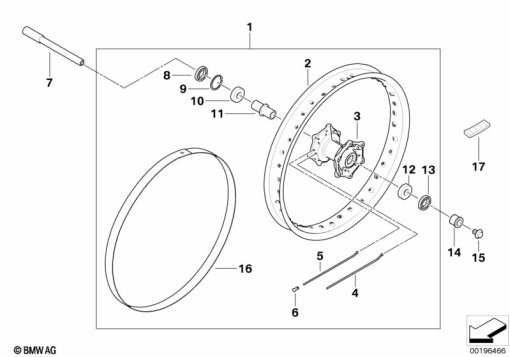

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 564 176 | SPOKE WHEEL FRONT - 2.15X21 | - | |
| 2 | 36 31 8 559 994 | WHEEL, FRONT - 2,15X21 | - | |
| 3 | 36 31 7 704 465 | WHEEL HUB, FRONT | - | |
| 4 | 36 31 7 720 082 | SPOKE, FRONT, INNER - M4,5; L=237,5MM | - | |
| 5 | 36 31 7 720 083 | SPOKE, FRONT, OUTER - M4,5; L=235,5MM | - | |
| 6 | 36 31 7 720 084 | NIPPLE - M4,5 | - | |
| 7 | 36 31 7 713 558 | FLOATING AXLE, FRONT | - | |
| 8 | 36 31 8 561 712 | SHAFT SEAL - AS25X47X7 | - | |
| 9 | 07 11 9 906 808 | LOCK RING - 47X1,75 | - | |
| 10 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | - | |
| - | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | - | |
| 11 | 36 31 7 695 884 | SPACER BUSH | - | |
| 12 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | - | |
| - | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | - | |
| 13 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | - | |
| 14 | 36 31 7 653 132 | BUSH LEFT | - | |
| 15 | 36 31 7 705 315 | HEX BOLT - M14X1.5 | - | |
| 16 | 36 31 7 720 085 | TIRE FLAP - 21"/28MM | - | |
| 17 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 17 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 17 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 17 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 17 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 17 | - |
