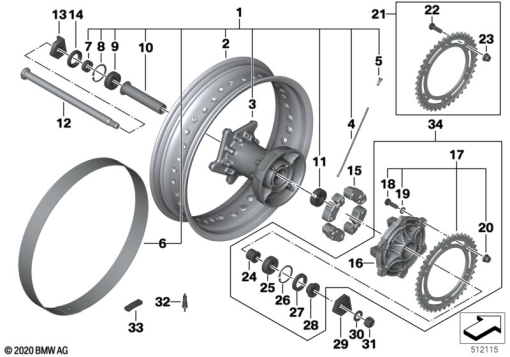

Parts List (49)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 564 177 | SPOKE WHEEL, REAR - 4.25X17 | 1 | |
| 2 | 36 31 7 719 728 | WHEEL RIM REAR - 4,25X17 | 1 | |
| 2 | 36 31 8 559 999 | WHEEL RIM REAR - 4,25X17 | 1 | |
| 3 | 36 31 7 720 090 | WHEEL HUB REAR | 1 | |
| 4 | 36 31 7 719 729 | SPOKE REART - M4,5 | 1 | |
| 5 | 36 31 7 719 730 | NIPPLE - M4,5 | 1 | |
| 6 | 34 32 7 704 859 | TIRE FLAP - 17"/45MM | 1 | |
| 7 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | 1 | |
| 8 | 07 11 9 906 808 | LOCK RING - 47X1,75 | 1 | |
| 9 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| – | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | 1 | |
| 10 | 36 31 7 695 888 | SPACER SLEEVE, INTERIOR | 1 | |
| 11 | 36 31 8 534 835 | GROOVED BALL BEARING - 20X47X14 | 1 | |
| – | Ball bearing 6204 - 2RS1. | Ball bearing 6204 - 2RS1. | 1 | |
| 12 | 36 31 7 720 906 | AXLE SHAFT REAR | 1 | |
| 13 | 36 31 7 720 907 | CHAIN TENSIONER | 1 | |
| 14 | 36 31 7 653 136 | SPACER BUSHING, EXTERIOR | 1 | |
| 15 | 33 11 7 712 298 | ABSORBER | 1 | |
| 16 | 27 71 7 717 630 | SPROCKET HUB - M10 | 1 | |
| 17 | 33 81 8 533 977 | SET: SPROCKET WHEEL SET - Z=42; M10 | 1 | |
| – | 27 71 7 721 920 | SPROCKET HUB - M10 | 1 | |
| 18 | 07 11 9 902 912 | HEX BOLT - M10X30-10.9ZNS3 | 1 | |
| – | 27 71 7 721 920 | SPROCKET HUB - M10 | 1 | |
| 19 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | 1 | |
| – | 27 71 7 721 920 | SPROCKET HUB - M10 | 1 | |
| 20 | 22 11 6 779 973 | FLANGE NUT - M10 | 1 | |
| – | 27 71 7 721 920 | SPROCKET HUB - M10 | 1 | |
| 21 | 27 71 7 726 616 | SET: SPROCKET WHEEL SET - Z=42; M8 | 1 | |
| – | 33 11 7 679 356 | SPROCKET HUB - M8 | 1 | |
| 22 | 07 11 9 906 181 | HEX BOLT - M8X25-8.8-ZNNIV | 1 | |
| – | 33 11 7 679 356 | SPROCKET HUB - M8 | 1 | |
| 23 | 07 11 9 905 977 | HEX NUT WIHT FLANGE - M8-8-ZNNIV SI | 1 | |
| – | 33 11 7 679 356 | SPROCKET HUB - M8 | 1 | |
| 24 | 33 11 7 679 359 | BUSHING, INSIDE | 1 | |
| 25 | 33 81 8 543 930 | GROOVED BALL BEARING - 6204-2RSH | 1 | |
| 26 | 07 11 9 906 808 | LOCK RING - 47X1,75 | 1 | |
| 27 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | 1 | |
| 28 | 33 11 7 679 358 | SPACER BUSHING, EXTERIOR | 1 | |
| 29 | 36 31 7 698 731 | CHAIN TENSIONER | 1 | |
| 30 | 07 11 9 906 046 | WASHER - 16-200-HV-ZNS3 | 1 | |
| 31 | 36 31 7 704 461 | HEX NUT - M16 | 1 | |
| 32 | 36 31 7 683 236 | VALVE - L=20MM | 1 | |
| 33 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | 1 | |
| 33 | 36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G | 1 | |
| 33 | 36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G | 1 | |
| 33 | 36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G | 1 | |
| 33 | 36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G | 1 | |
| 33 | 36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G | 1 | |
| 34 | 33 81 8 528 285 | CHAIN SPROCKET W/ CHAIN SPROCKET CARRIER - Z=42; M10 | 1 |
