F800GS 08 (K72) | Fuel Supply

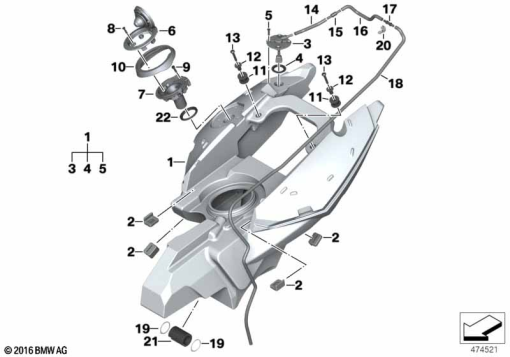

FUEL TANK/MOUNTING PARTS
Diagram #16_0692 | 23 parts | 1 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 8 557 630 | FUEL TANK | 1 | |
| 2 | 16 11 7 686 771 | TANK GUIDE, TOP | 1 | |
| 3 | 16 11 7 691 397 | SAFETY VALVE | 1 | |
| 4 | 16 11 7 691 511 | GASKET | 1 | |
| 5 | 07 14 6 986 087 | TORX-BOLT FOR PLASTIC MATERIAL - ISA L=20MM | 1 | |
| 5 | 07 14 7 237 918 | TORX-COUNTERSUNK HEAD SCREW - M5X20-8.8-ZNNID | 1 | |
| – | 16 11 8 557 630 | FUEL TANK | 1 | |
| 6 | 16 11 7 691 502 | TANK LID | 1 | |
| 7 | 16 11 7 714 671 | FILLER TUBE | 1 | |
| 8 | 07 14 7 237 918 | TORX-COUNTERSUNK HEAD SCREW - M5X20-8.8-ZNNID | 1 | |
| 9 | 07 12 9 903 324 | ISA SCREW - M5X16-A2-70 | 1 | |
| 10 | 46 63 7 687 667 | COVER STRIP BLACK | 1 | |
| 11 | 16 11 7 692 467 | RUBBER GROMMET | 1 | |
| 12 | 16 11 7 701 996 | COLLAR BUSH - 20X10X20 | 1 | |
| 13 | 63 12 7 699 141 | FILLISTER HEAD SCREW - M6X40-A2-70 | 1 | |
| 14 | 11 74 7 797 115 | HOSE RUNNING METER - 4,5X9MM (meter) | 1 | |
| 15 | 61 66 1 382 908 | CONNECTION PIECE | 1 | |
| 17 | 16 11 7 721 943 | TANKENTLÜFTUNGSVENTIL | 1 | |
| 19 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 20 | 61 13 6 918 644 | CABLE STRAP WITH BRACKET - L=200MM | 1 | |
| 21 | 16 11 7 706 736 | RUBBER ELEMENT (to 06/11) | 1 | |
| 21 | 16 11 7 706 736 | RUBBER ELEMENT (from 06/11) | 1 | |
| 22 | 16 11 7 714 670 | FILLER TUBE GASKET | 1 |
