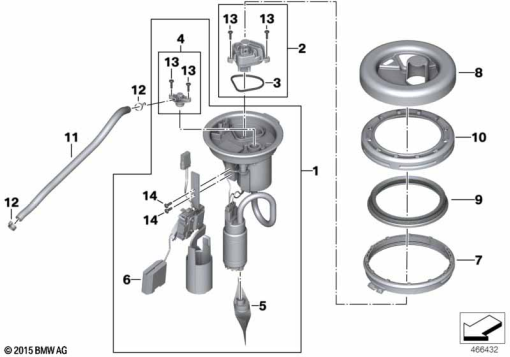

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 14 8 556 077 | FUEL PUMP UNIT WITH LEVER SENSOR | 1 | |
| 1 | 16 11 7 677 883 | GASKET | 1 | |
| 2 | 16 14 8 523 262 | SET: FUEL PUMP, ELECTRONIC | 1 | |
| 3 | 16 14 7 722 876 | PREFORMED SEAL | 1 | |
| 4 | 16 14 7 708 313 | FEED PIPE | 1 | |
| 5 | 16 14 7 708 314 | STRAINER | 1 | |
| 6 | 16 14 7 723 153 | FUEL LEVEL SENSOR | 1 | |
| 7 | 16 14 1 182 903 | SUPPORTING RING | 1 | |
| 8 | 16 14 7 693 055 | COVER FOR FUEL PUMP | 1 | |
| 9 | 16 11 7 677 883 | GASKET | 1 | |
| 10 | 16 11 6 760 285 | SCREW CAP | 1 | |
| 11 | 13 54 7 682 690 | FUEL HOSE - D6X11-L=565MM | 1 | |
| 2 | 11 73 1 277 848 | HOSE CLAMP - 11,1-13,1 | 1 | |
| 12 | 11 73 1 277 848 | HOSE CLAMP - 11,1-13,1 | 1 | |
| 13 | 16 14 7 713 360 | TORX SCREW - M3.5X14 | 1 | |
| 14 | 07 11 9 906 189 | SHEET METAL SCREW - ST4,2X13 | 1 |
