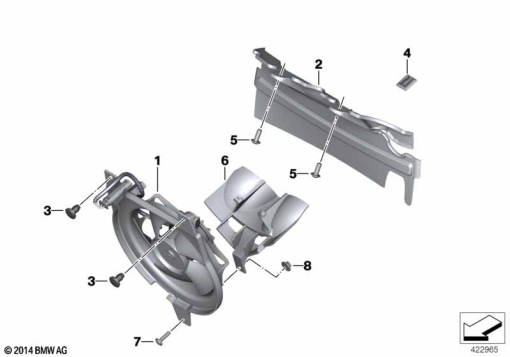

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 8 528 880 | 1.09 | - | |
| 3 | 51 49 8 237 075 | EXPANDING RIVET | - | |
| 4 | 61 13 1 378 997 | BRACKET, PLUG CONNECTION WHITE | - | |
| 6 | 17 11 7 713 359 | FAN SHROUD | - | |
| 7 | 11 11 7 653 180 | FILLISTER HEAD SCREW - M6X20-A2-80 | - | |
| 8 | 07 12 9 904 553 | HEX NUT WITH PLATE - AM6-8-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
