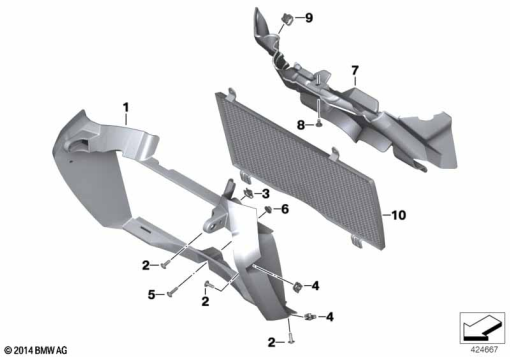

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 698 571 | AIR DUCT | - | |
| 2 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 3 | 46 63 7 651 465 | PLUG-IN NUT - M5 | - | |
| 4 | 46 63 7 658 638 | FLAT NUT - M5 | - | |
| 5 | 06 32 7 657 966 | FILLISTER HEAD SCREW - M5X20SI | - | |
| 6 | 07 12 9 904 381 | HEX NUT WITH PLATE - M5-8-ZNNIV SI | - | |
| 7 | 46 63 7 685 182 | HEAT SHIELD | - | |
| 8 | 06 32 7 651 211 | FILLISTER HEAD SCREW - M5X12-A2-80 | - | |
| 9 | 61 13 7 670 182 | FIXING CLAMP | - | |
| 10 | 17 11 7 694 197 | PROTECTING GRILLE | - |
