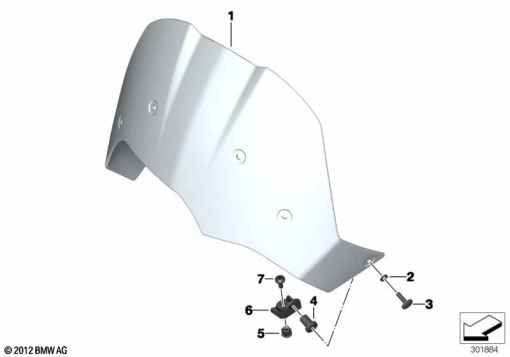

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 713 296 | SET: SET, WINDSHIELD, SMALL, CLEAR - L=180MM | 1 | |
| 2 | 46 61 2 308 594 | WASHER | 1 | |
| 3 | 71 60 7 654 904 | FILLISTER HEAD SCREW - M5X18 | 1 | |
| 4 | 46 63 2 347 012 | BLIND RIVET NUT, FLAT HEADED - M5 | 1 | |
| 5 | 46 63 7 699 356 | THREADED BUSH - M5 | 1 | |
| 6 | 46 63 7 701 955 | WINDSHIELD BRACKET, LEFT | 1 | |
| 6 | 46 63 7 701 956 | WINDSHIELD BRACKET, RIGHT | 1 | |
| 7 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | 1 |
