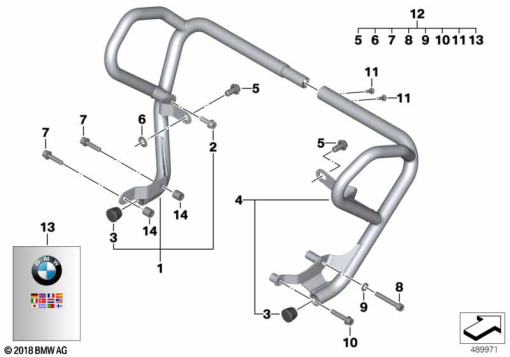

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 14 8 405 683 | LEFT ENGINE PROTECTION BAR | - | |
| 2 | 07 12 9 906 138 | ISA SCREW - M8X25-U1-8.8 | - | |
| 3 | 71 60 7 713 031 | PLUG | - | |
| 4 | 77 14 8 405 684 | RIGHT ENGINE PROTECTION BAR | - | |
| 5 | 07 12 9 907 393 | FILLISTER-HEAD SCREW - M10X20MM | - | |
| 6 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 7 | 07 12 9 905 868 | ISA SCREW - M8X16-ZNNIV SI | - | |
| 8 | 07 12 9 904 261 | ISA SCREW - M8X55 | - | |
| 9 | 07 11 9 907 030 | WASHER - 8,4X16X1,6-ZNNV | - | |
| 10 | 07 12 9 904 552 | ISA SCREW - M8X40-Z1 | - | |
| 11 | 06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80 | - | |
| 12 | 71 60 7 702 395 | SET: SET MOUNTING KIT FOR CRASH BAR | - | |
| 13 | 01 29 7 701 805 | INSTALL.INSTRUCT., ENGINE PROTECTION BAR | - |
