F800GS 08 (K72) | Accessories
SINGLE PARTS FOR ALUMINUM TOP CASE

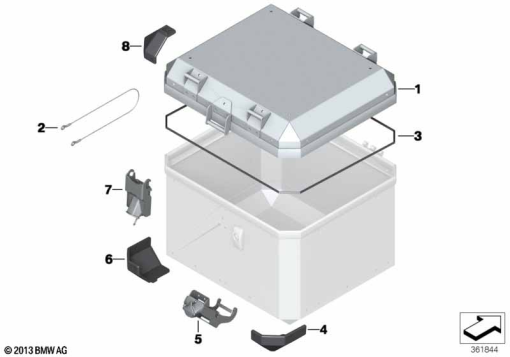

Diagram #77_0683 | 8 parts | 1 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 695 764 | TOP CASE COVER | 1 | |
| 2 | 71 60 7 699 871 | CHECK STRAP - L=500MM | 1 | |
| 3 | 71 60 7 712 838 | GASKET | 1 | |
| 4 | 71 60 7 694 177 | COVER, BOTTOM LEFT | 1 | |
| 5 | 71 60 7 694 183 | CASE SUSPENSION CATCH W/O TUMBLER, RIGHT | 1 | |
| 6 | 71 60 7 694 178 | COVER, BOTTOM RIGHT | 1 | |
| 7 | 71 60 8 566 449 | CAP LOCK WITHOUT CYLINDER | 1 | |
| 8 | 71 60 7 694 175 | COVER, LUGGAGE CASE COVER | 1 |
