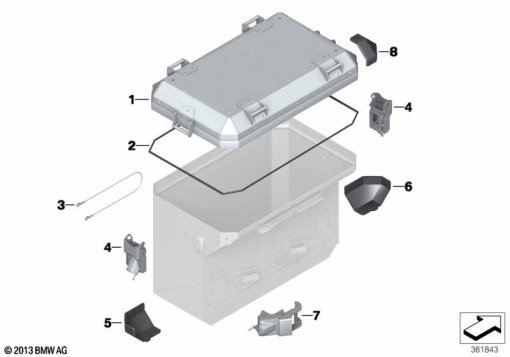

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 695 789 | CASE COVER, COMPLETE | - | |
| 2 | 71 60 7 712 837 | GASKET | - | |
| 3 | 71 60 7 695 073 | CHECK STRAP - L=450MM | - | |
| 4 | 71 60 8 566 449 | CAP LOCK WITHOUT CYLINDER | - | |
| 5 | 71 60 7 694 178 | COVER, BOTTOM RIGHT | - | |
| 6 | 71 60 7 694 177 | COVER, BOTTOM LEFT | - | |
| 7 | 71 60 7 694 183 | CASE SUSPENSION CATCH W/O TUMBLER, RIGHT | - | |
71 60 7 710 703 | CASE SUSPENSION CATCH W/O TUMBLER, LEFTAlternative for position 7 | - | ||
| 8 | 71 60 7 694 175 | COVER, LUGGAGE CASE COVER | - |
