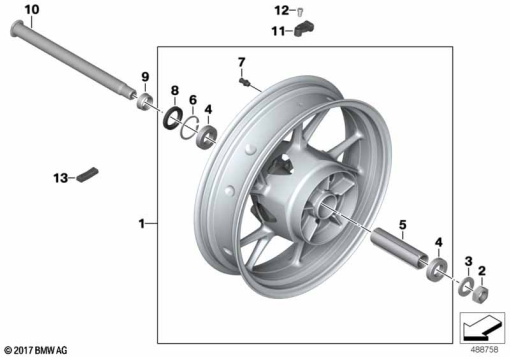

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 394 331 | CAST WHEEL GRAY REAR - 4.25X17 | - | |
36 31 8 388 562 | CAST RIM, BLACK REAR - 4.25X17Alternative for position 1 | - | ||
| 2 | 33 17 7 718 533 | NUT - M24X1,5 | - | |
| 3 | 07 11 9 906 682 | WASHER | - | |
| 4 | 36 31 8 564 955 | GROOVED BALL BEARING | - | |
| 5 | 36 31 8 562 657 | SPACER BUSH - 137.7X28.5 | - | |
| 6 | 07 11 9 934 723 | LOCK RING - 52X2 | - | |
| 7 | 36 31 7 693 061 | VALVE | - | |
| 8 | 36 31 8 561 709 | SHAFT SEAL - 35X52X7 | - | |
| 9 | 36 31 8 555 423 | SPACER BUSH - 14.15X28.2 | - | |
| 10 | 33 17 7 718 528 | AXLE SHAFT REAR | - | |
| 11 | 36 31 9 832 032 | RDC SENSOR (to 08/22) | - | |
36 31 7 914 365 | new RDC sensorAlternative for position 11 | - | ||
36 31 7 106 019 | RDC SENSOR - 433 MHZ (from 03/22)Alternative for position 11 | - | ||
| 12 | 36 31 8 359 961 | ISA SCREW - M8X1.25 MK (to 08/22) | - | |
36 31 7 106 018 | TORX SCREW - M8X20 (from 03/22)Alternative for position 12 | - | ||
| 13 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 13 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 13 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 13 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 13 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 13 | - |
