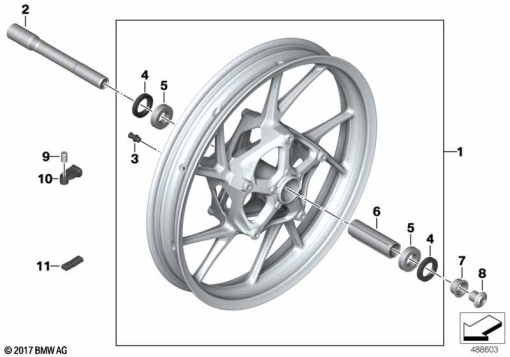

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 388 561 | CAST RIM, BLACK FRONT - 2.5X19 | 1 | |
| 1 | 36 31 8 394 332 | CAST WHEEL GREY FRONT - 2.5X19 | 1 | |
| 2 | 36 31 7 925 192 | QUICK-RELEASE AXLE | 1 | |
| 3 | 36 31 7 693 061 | VALVE | 1 | |
| 4 | 36 31 8 561 711 | SHAFT SEAL - AS30X47X7 | 1 | |
| 5 | 36 31 8 565 251 | GROOVED BALL BEARING - 25X47 | 1 | |
| 6 | 36 31 8 551 385 | SPACER BUSH - D=25.5 L=105 | 1 | |
| 5 | 36 31 8 531 207 | GROOVED BALL BEARING | 1 | |
| 7 | 36 31 8 544 127 | BUSH | 1 | |
| 8 | 36 31 8 561 528 | SCREW - M20X1,5 | 1 | |
| 9 | 36 31 8 359 961 | ISA SCREW - M8X1.25 MK (to 08/22) | 1 | |
| 9 | 36 31 7 106 018 | TORX SCREW - M8X20 (from 03/22) | 1 | |
| 10 | 36 31 7 914 365 | new RDC sensor | 1 | |
| 10 | 36 31 9 832 032 | RDC SENSOR (to 08/22) | 1 | |
| 10 | 36 31 7 106 019 | RDC SENSOR - 433 MHZ (from 03/22) | 1 | |
| 10 | 36 31 7 106 020 | RDC SENSOR - 315 MHZ (from 03/22) | 1 | |
| 11 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | 1 | |
| 11 | 36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G | 1 | |
| 11 | 36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G | 1 | |
| 11 | 36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G | 1 | |
| 11 | 36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G | 1 | |
| 11 | 36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G | 1 |
