F750GS (K80) | Service Items
SERVICE OF TELESCOPIC FORKS

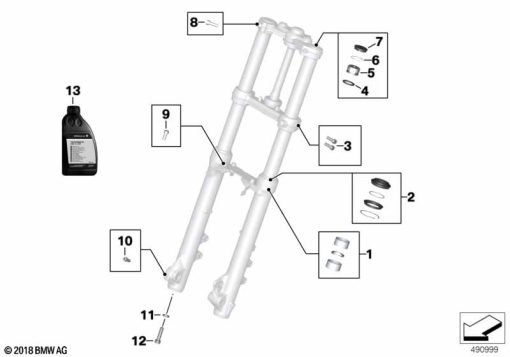

Diagram #02_0177 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 8 358 445 | SET: SET OF SLIDING SLEEVES | 1 | |
| 2 | 31 42 8 358 444 | SET: SET OF GASKETS | 1 | |
| 3 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 4 | 31 42 2 345 383 | O-RING | 1 | |
| 5 | 31 42 7 655 781 | SPRING RETAINER | 1 | |
| 6 | 31 42 2 312 713 | SNAP RING | 1 | |
| 7 | 31 42 8 356 855 | COVERING CAP | 1 | |
| 8 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 9 | 07 12 9 907 383 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV | 1 | |
| 10 | 07 12 9 907 380 | ISA SCREW - M8X35-8.8-ZNNIV | 1 | |
| 11 | 31 42 2 312 710 | GASKET | 1 | |
| 12 | 31 42 7 696 053 | FILLISTER-HEAD SCREW - M8X18 | 1 | |
| 13 | 83 19 2 470 714 | TELESCOPIC FORK OIL TYPE 4 - 1000ML | 1 |
