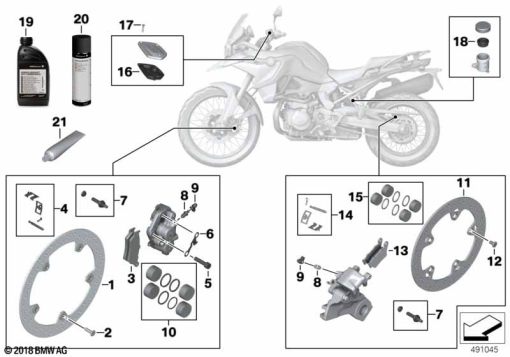

Parts List (36)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 8 526 566 | BRAKE ROTOR WITH RIVET - D=305-4,5MM | - | |
| 10 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| - | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| - | 34 21 8 569 412 | SET: SET OF BRAKE PADS FRONT | - | |
| - | 83 12 2 296 187 | Brake Pad Paste - 5 ml | - | |
| - | 34 11 8 382 714 | SET: SET OF MOUNTING PARTS, LEFT | - | |
| - | 34 11 8 382 868 | SET: SET OF MOUNTING PARTS, RIGHT | - | |
| - | 07 12 9 907 937 | FILLISTER-HEAD SCREW - M10X45-U0-8.8 | - | |
| - | 34 52 8 404 579 | BRACKET | - | |
| - | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| - | 34 21 2 335 975 | VENT SCREW | - | |
| - | 34 21 1 236 794 | DUST CAP | - | |
| 10 | 34 11 8 382 869 | SET: SET PISTONS WITH GASKET | - | |
| 11 | 34 21 7 664 102 | BRAKE DISK | - | |
| - | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| 12 | 33 17 7 709 205 | TORX SCREW - M8X15,5-MK-ZNS3 | - | |
| 13 | 34 21 7 107 625 | BRAKE PADS KIT, REAR | - | |
34 21 7 722 884 | SET: BRAKE PADS KIT, REAR (to 09/22)Alternative for position 13 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 13 | - | ||
34 21 7 107 625 | SET: BRAKE PADS KIT, REARAlternative for position 13 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 13 | - | ||
| 14 | 34 21 8 382 871 | SET: MOUNTING PARTS SET | - | |
| 15 | 34 21 8 382 872 | SET: SET PISTONS WITH GASKET | - | |
| 16 | 32 72 8 558 856 | RUBBER BOOT | - | |
| 17 | 32 72 8 559 863 | COUNTERSUNK SCREW - M4X20 | - | |
| 18 | 34 31 8 358 710 | BOOT | - | |
| 19 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23) | - | |
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 19 | - | ||
83135A824F1 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60LAlternative for position 19 | - | ||
83 13 2 405 975 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 04/23)Alternative for position 19 | - | ||
83135A824F2 | BRAKE FLUID DOT4, LOW-VISCOSITY EU - 250MLAlternative for position 19 | - | ||
| 20 | 83 19 2 445 462 | BRAKE CLEANER 2.0 - 500ML (to 09/20) | - | |
83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 20 | - | ||
83 19 2 406 954 | BRAKE CLEANER 2.0 - 500ML (to 07/20)Alternative for position 20 | - | ||
83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 20 | - | ||
| 21 | 83 19 2 158 852 | BRAKE PAD PASTE - 100G | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
