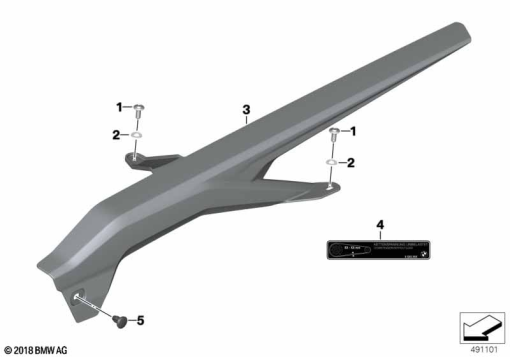

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 2 | 46 63 8 525 836 | PLASTIC WASHER - M6 | - | |
| 3 | 46 62 8 564 626 | CHAIN GUARD | - | |
| 4 | 71 22 8 394 668 | NOTICE LABEL, CHAIN TENSION - 30-40MM | - | |
71 22 9 829 413 | NOTICE LABEL, CHAIN TENSION - 25-35MMAlternative for position 4 | - | ||
71 22 9 829 411 | NOTICE LABEL, CHAIN TENSION - 30-40MMAlternative for position 4 | - | ||
| 5 | 07 14 7 136 172 | EXPANDING RIVET | - |
