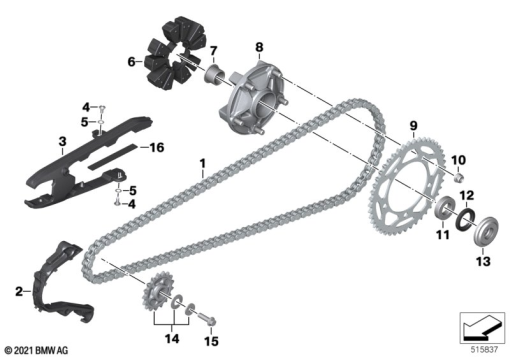

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 81 8 522 842 | CHAIN - 122 | - | |
33 81 7 106 113 | M ENDURANCE CHAIN - 122GLAlternative for position 1 | - | ||
| 2 | 33 81 8 392 821 | CHAIN FAILURE PROTECTION | - | |
| 3 | 33 81 8 522 844 | CHAIN RAIL | - | |
| 4 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | - | |
| 5 | 46 63 8 525 836 | PLASTIC WASHER - M6 | - | |
| 6 | 33 81 8 522 843 | DAMPER | - | |
| 7 | 33 81 8 522 839 | SPACER SHIMS, INNER | - | |
| 8 | 33 81 7 108 633 | SPROCKET HUB | - | |
| 9 | 33 81 8 522 841 | SPROCKET - Z=44 | - | |
| 10 | 07 14 7 105 813 | COLLAR NUT - M12X1,5 | - | |
| 11 | 27 71 8 523 193 | GROOVED BALL BEARING | - | |
| 12 | 33 81 8 378 799 | SIMMERRING - 58X40X8 | - | |
| 13 | 33 81 8 522 840 | SPACER BUSHING, EXTERIOR | - | |
| 14 | 23 00 8 404 494 | SET: SET CHAIN SPROCKET | - | |
| 15 | 27 71 7 699 375 | SCREW - M10X35-8.8 | - |
