F750GS (K80) | Electrical System

HORN

Diagram #61_5715 | 4 parts

100%

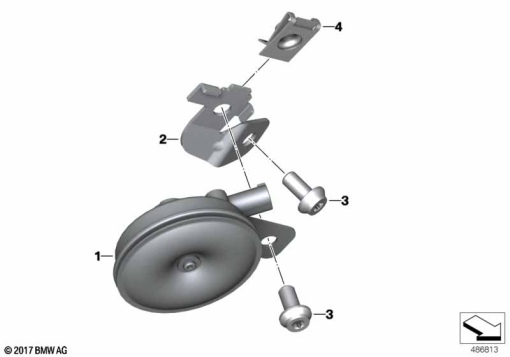

F750GS (K80) HORN exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 33 7 728 614
HORN1
2
61 33 8 389 071
RETAINING BRACKET FOR HORN1
3
07 12 9 907 384
ISA SCREW - M8X16-8.8-ZNNIV1
4
61 33 2 346 555
C-CLIP NUT - M8-ZNS31
