F750GS (K80) | Electrical System

COVER, CABLE RUNWAY

Diagram #61_5745 | 5 parts

100%

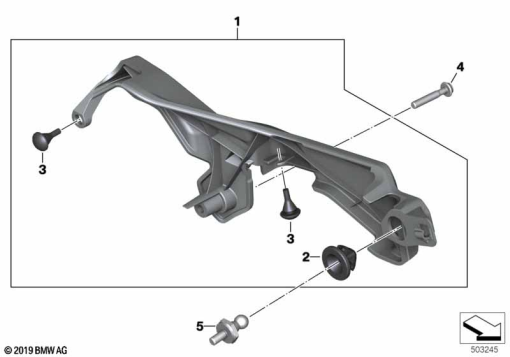

F750GS (K80) COVER, CABLE RUNWAY exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
61 11 8 394 718
COVER, CABLE RUNWAY1
2
07 14 9 348 390
RUBBER ELEMENT1
3
52 53 7 703 580
RUBBER SUPPORT1
4
07 12 9 907 407
FILLISTER-HEAD SCREW - M5X30-8.8-ZNNIV1
5
07 14 9 362 188
BALL PIN1
