F750GS (K80) | Electrical System

FUSES

Diagram #61_5768 | 4 parts

100%

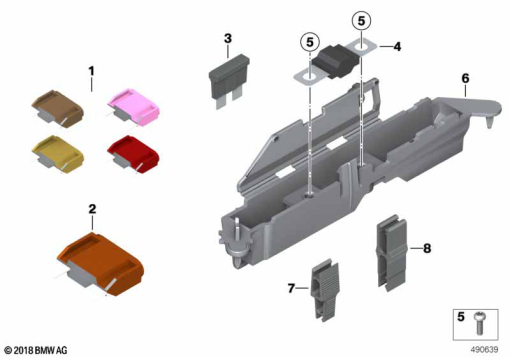

F750GS (K80) FUSES exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 13 6 917 402
FUSE MINI, BROWN - 7,5A-
61 13 6 917 403
FUSE MINI, RED - 10AAlternative for position 1-
61 13 6 917 404
FUSE MINI, BLUE - 15AAlternative for position 1-
8
61 13 7 668 722
GRIPPER CLIP FOR MINIATURE FUSES-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
