F750GS (K80) | Electrical System

CONTROL UNIT SUPPORT

Diagram #61_5764 | 4 parts

100%

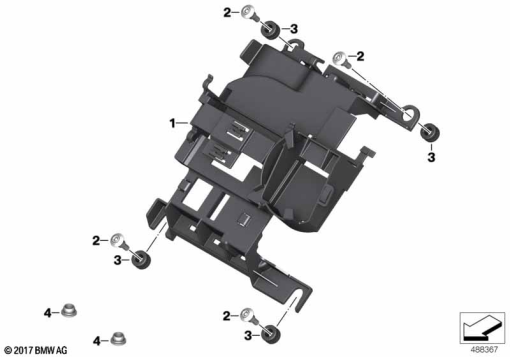

F750GS (K80) CONTROL UNIT SUPPORT exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
61 35 8 522 933
CONTROL UNIT SUPPORT1
2
46 63 8 521 655
BODY SCREW WITH SHOULDER - M5X201
3
46 63 8 534 532
RUBBER GROMMET1
4
61 13 9 217 729
BLIND PLUG - D=10MM1
