CAST RIM, REAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #36_1760 | 35 parts | 4 available in shop

100%

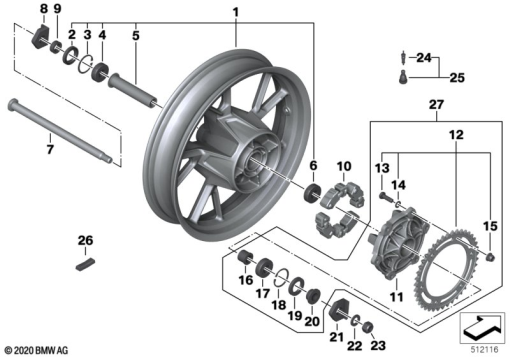

F700GS (K70) CAST RIM, REAR exploded view parts diagram

Parts List (35)

#	Part Number	Description	Qty
1	36 31 8 556 106	BLACK REAR WHEEL - 3,5X17	1
1	36 31 7 726 035	REAR WHEEL, MAGNESIUM - 3,5X17	1
2	36 31 8 561 711	SHAFT SEAL - AS30X47X7	1
3	07 11 9 906 808	LOCK RING - 47X1,75	1
4	36 31 8 534 835	GROOVED BALL BEARING - 20X47X14	1
–	Ball bearing 6204 - 2RS1.	Ball bearing 6204 - 2RS1.	1
5	36 31 7 695 888	SPACER SLEEVE, INTERIOR	1
6	36 31 8 534 835	GROOVED BALL BEARING - 20X47X14	1
–	Ball bearing 6204 - 2RS1.	Ball bearing 6204 - 2RS1.	1
7	36 31 7 720 906	AXLE SHAFT REAR	1
8	36 31 7 726 976	CHAIN TENSIONER, LEFT	1
9	36 31 7 653 136	SPACER BUSHING, EXTERIOR	1
10	33 11 7 712 298	ABSORBER	1
11	27 71 7 717 630	SPROCKET HUB - M10	1
12	33 81 8 533 977	SET: SPROCKET WHEEL SET - Z=42; M10	1
13	07 11 9 902 912	HEX BOLT - M10X30-10.9ZNS3	1
14	07 11 9 907 114	WASHER - 10-200HV-ZNNIV	1
15	22 11 6 779 973	FLANGE NUT - M10	1
16	33 11 7 679 359	BUSHING, INSIDE	1
17	33 81 8 543 930	GROOVED BALL BEARING - 6204-2RSH	1
18	07 11 9 906 808	LOCK RING - 47X1,75	1
19	36 31 8 561 711	SHAFT SEAL - AS30X47X7	1
20	33 11 7 679 358	SPACER BUSHING, EXTERIOR	1
21	36 31 7 726 977	CHAIN TENSIONER, RIGHT	1
22	07 11 9 906 046	WASHER - 16-200-HV-ZNS3	1
23	07 12 9 906 784	HEX NUT - M16X1,5	1
24	36 31 7 683 236	VALVE - L=20MM	1
25	36 31 7 653 064	VALVE - D=15MM	1
26	36 31 7 720 635	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G	1
26	36 31 7 720 636	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G	1
26	36 31 7 720 637	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G	1
26	36 31 7 720 638	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G	1
26	36 31 7 720 639	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G	1
26	36 31 7 720 640	BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G	1
27	33 81 8 528 285	CHAIN SPROCKET W/ CHAIN SPROCKET CARRIER - Z=42; M10	1
