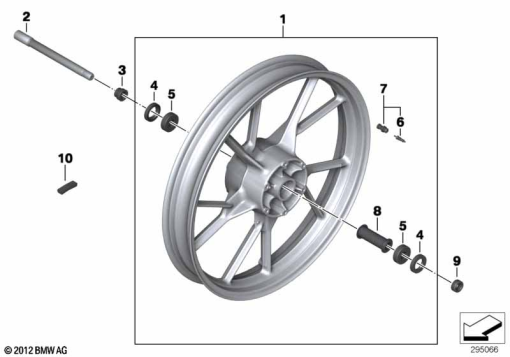

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 8 534 807 | FRONT WHEEL, MAGNESIUM - 2,5X19 | - | |
36 31 8 556 104 | BLACK FRONT WHEEL - 2,5X19Alternative for position 1 | - | ||
| 2 | 36 31 7 705 569 | FLOATING AXLE, FRONT | - | |
| 3 | 36 31 8 534 557 | SPACER BUSH - L=16,6MM | - | |
| 4 | 36 31 8 561 713 | SHAFT SEAL - AS25X40X7 | - | |
| 5 | 31 42 2 314 724 | GROOVED BALL BEARING - 17X40X12 | - | |
| 6 | 36 31 7 685 555 | VALVE - L=16MM | - | |
| 7 | 36 31 7 693 061 | VALVE | - | |
| 8 | 36 31 8 525 616 | SPACER TUBE | - | |
| 9 | 36 31 8 534 558 | SPACER BUSH - L=11MM | - | |
| 10 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 10 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 10 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 10 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 10 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 10 | - |
