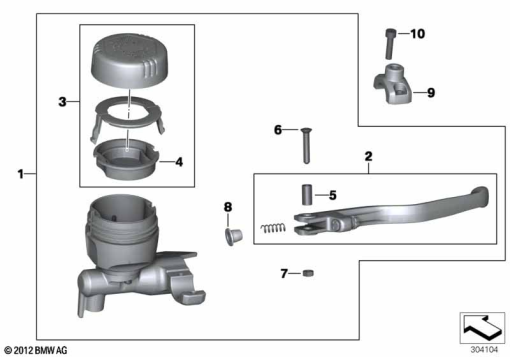

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 530 045 | HANDBRAKE LEVER | - | |
| 2 | 32 72 8 524 170 | HANDBRAKE LEVER | - | |
| 3 | 32 72 7 723 459 | SET: SET OF CAPS, FLUID RESERVOIR, BRAKES | - | |
| 4 | 32 72 7 673 999 | RUBBER BOOT | - | |
| 5 | 32 72 7 673 990 | SLEEVE | - | |
| 6 | 32 72 7 673 989 | COUNTERSUNK HEAD SCREW - M5X30 | - | |
| 7 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 8 | 32 72 7 673 919 | DUST PROTECTION COLLAR | - | |
| 9 | 32 72 8 533 246 | CLAMP WITH MIRROR MOUNT - M6 (to 01/18) | - | |
32 72 9 457 585 | CLAMP WITH MIRROR MOUNT - M6Alternative for position 9 | - | ||
32 72 8 527 936 | PIPE CLAMP RIGHTAlternative for position 9 | - | ||
| 10 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - |
