F700GS (K70) | Steering

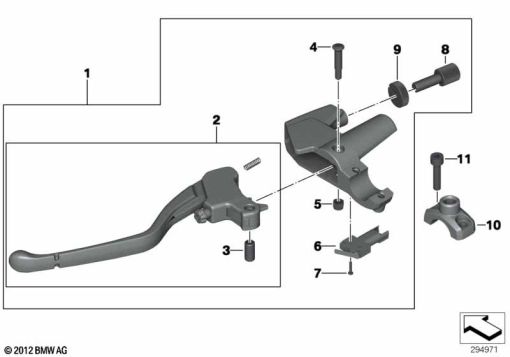

CLUTCH LEVER ASSEMBLY HANDLEBAR CLAMP M6
Diagram #32_2130 | 14 parts | 1 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 523 463 | CLUTCH LEVER ASSEMBLY, ADJUSTABLE | 1 | |
| 2 | 32 72 7 705 606 | SET: CLUTCH LEVER | 1 | |
| 3 | 32 72 7 673 990 | SLEEVE | 1 | |
| 4 | 32 72 7 673 989 | COUNTERSUNK HEAD SCREW - M5X30 | 1 | |
| 5 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | 1 | |
| 6 | 61 31 7 671 111 | MICROSWITCH | 1 | |
| 7 | 32 72 2 333 066 | FILLISTER-HEAD SCREW - M2X12 4.8 (to 07/11) | 1 | |
| 7 | 07 11 9 907 425 | COUNTERSUNK SCREW - M2X12-8.8-MK | 1 | |
| 8 | 32 72 7 678 100 | ADJUSTMENT SCREW, BOWDEN CABLE | 1 | |
| 9 | 32 72 7 678 101 | COUNTER NUT | 1 | |
| 10 | 32 72 8 533 246 | CLAMP WITH MIRROR MOUNT - M6 (to 04/19) | 1 | |
| 10 | 32 72 9 457 585 | CLAMP WITH MIRROR MOUNT - M6 | 1 | |
| 10 | 32 72 8 527 935 | PIPE CLAMP LEFT | 1 | |
| 11 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 |
