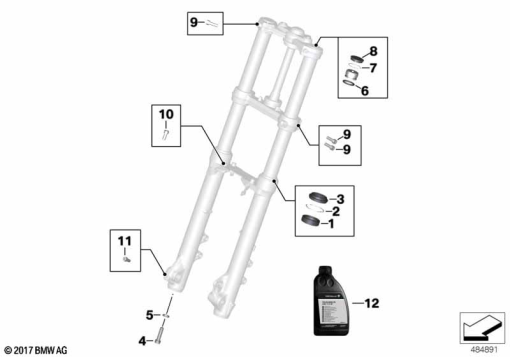

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 666 225 | GASKET RING | - | |
| 2 | 31 42 7 666 224 | SUPPORTING RING | - | |
| 3 | 31 42 7 666 223 | DUST PROTECTION COLLAR - D=41MM | - | |
| 4 | 31 42 7 666 240 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS3 | - | |
| 5 | 31 42 7 666 239 | GASKET RING | - | |
| 6 | 31 42 7 666 219 | O-RING | - | |
| 7 | 31 42 7 666 217 | SNAP RING | - | |
| 8 | 31 42 7 666 216 | COVERING CAP | - | |
| 9 | 07 12 9 904 477 | ISA SCREW - M8X25-10.9-ZNS3 | - | |
| 10 | 07 12 9 905 981 | ISA SCREW - M8X20-A2-70 | - | |
| 11 | 07 12 9 904 065 | ISA SCREW - M8X20-8.8-ZNS3 | - | |
| 12 | 83 19 2 408 581 | TELESCOPIC FORKS OIL TYPE 2 - 1000ML (to 03/18) | - | |
83 19 2 460 735 | TELESCOPIC FORKS OIL TYPE 2 - 1000MLAlternative for position 12 | - |
